Data Sheet. Ootbi – The Best Storage for Veeam

Download PDF

Ootbi by Object First is the best storage for Veeam. Ransomware-proof and immutable out-of-the-box, Ootbi by Object First delivers secure, simple, and powerful backup storage for Veeam customers.

In a world where businesses fall victim to ransomware every 11 seconds, and backups are often the target, Ootbi’s out-of-the-box immutability helps make backup data ransomware-proof. Designed around zero trust and data security principles with built-in immutability, Ootbi helps drastically reduce the risk of ransomware affecting backup data. A customized hardened Linux operating system doubles down on security, and with zero access to root or operating system means even the most privileged user cannot alter Ootbi or its immutable data. Never pay the ransom and recover confidently with Ootbi!

  • Secure by Default

    A hardened object storage appliance with zero access to the operating system that is third-party tested with constant security validation creates an impenetrable target for Veeam backup data.

  • Box-2-Backup in 15 Minutes

    No object storage or security expertise is required. Setup requires 3 IPs (two physical and on vIP for the S3 endpoint), a username, password, and MFA setup. That’s it!

  • Supercharged Instant Recovery

    Ootbi has been certified to handle up to 80 concurrent instant recoveries due to SOS-enabled direct-to-node network access bypassing any unnecessary traffic hops that might hinder performance

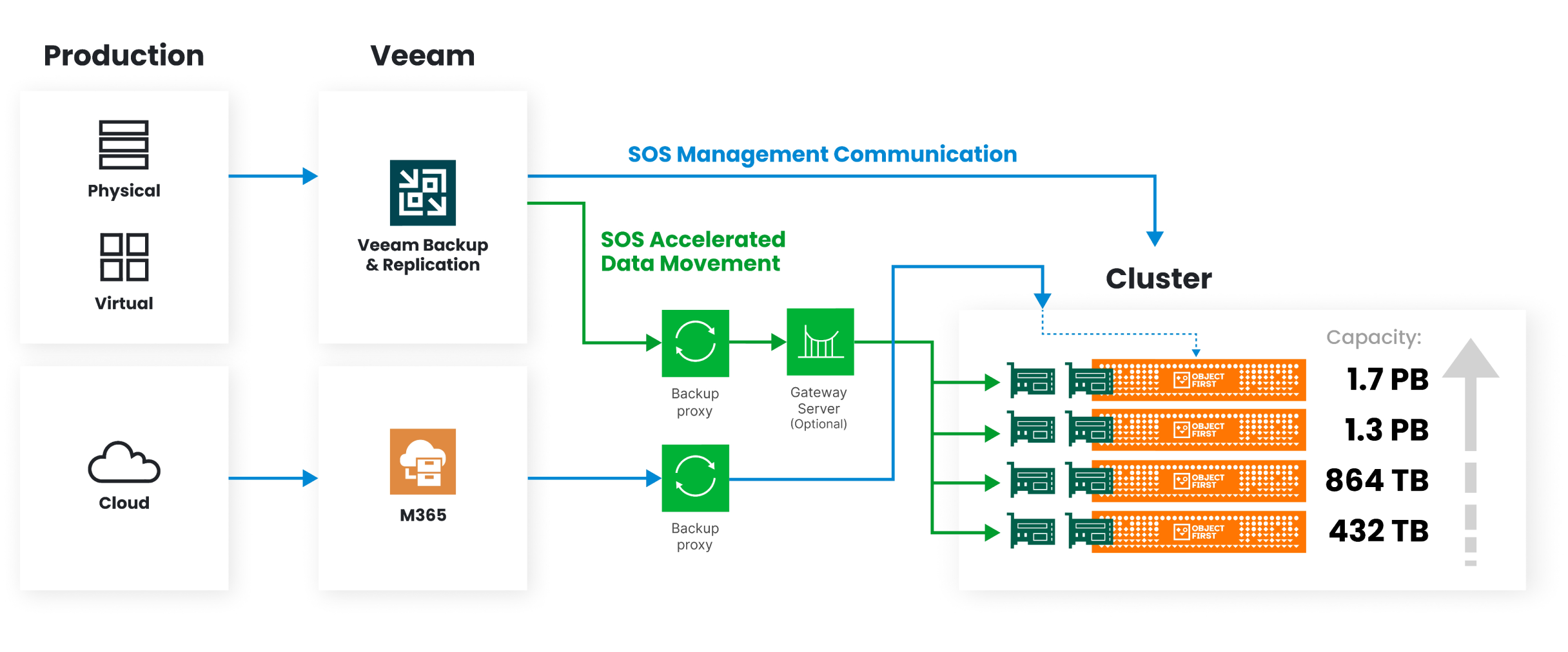

Flowchart showing Veeam's production environment, including physical and virtual sources, cloud data, and M365 backup and replication, integrating with SOS Management Communication and SOS Accelerated Data Movement to an Object First Cluster

What’s in the box?

Ootbi 64TBOotbi 128TBOotbi 192TB
Capacity
Usable Capacity Per Node64TB128TB192TB
Maximum Nodes Per Cluster444
Disk Arrangement
Primary Array10 x 8 TB SAS HDD (RAID 6)10 x 16 TB SAS HDD (RAID 6)10 x 24 TB SAS HDD (RAID 6)
Hot Spare1 x 8 TB SAS HDD1 x 16 TB SAS HDD1 x 24 TB SAS HDD
Dedicated OS Disks2 x 240 GB SATA SSD (RAID 1)2 x 240 GB SATA SSD (RAID 1)2 x 240 GB SATA SSD (RAID 1)
Cache1 x 1.6 TB NVMe1 x 1.6 TB NVMe1 x 1.6 TB NVMe
Specifications
Form Factor2U Rackmount2U Rackmount2U Rackmount
Dimensions (W x H x D)19” x 3.5” x 25.5”19” x 3.5” x 25.5”19” x 3.5” x 25.5”
Network Interface2 x 10GBase-T – Onboard2 x 10GBase-T – Onboard2 x 10GBase-T – Onboard
2 x SFP+ 10Gb/port – Card2 x SFP+ 10Gb/port – Card2 x SFP+ 10Gb/port – Card
ManagementDedicated IPMI 2.0 – RJ45Dedicated IPMI 2.0 – RJ45Dedicated IPMI 2.0 – RJ45
Power
Total Output Power1000W/1200W1000W/1200W1000W/1200W
Input100-127Vac / 15-12A / 50-60Hz100-127Vac / 15-12A / 50-60Hz100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A/ 50-60 Hz200-240Vac / 8.5-7A/ 50-60 Hz200-240Vac / 8.5-7A/ 50-60 Hz
+12VMax: 83A / Min: 0A (100-127Vac)Max: 83A / Min: 0A (100-127Vac)Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)Max: 100A / Min: 0A (200-240Vac)Max: 100A / Min: 0A (200-240Vac)
Max: 100A / Min: 0A (200-240Vdc)Max: 100A / Min: 0A (200-240Vdc)Max: 100A / Min: 0A (200-240Vdc)
  • Ootbi 64TB
    • Capacity
    • Usable Capacity Per Node
      64TB
    • Maximum Nodes Per Cluster
      4
    • Disk Arrangement
    • Primary Array
      10 x 8 TB SAS HDD (RAID 6)
    • Hot Spare
      1 x 8 TB SAS HDD
    • Dedicated OS Disks
      2 x 240 GB SATA SSD (RAID 1)
    • Cache
      1 x 1.6 TB NVMe
    • Specifications
    • Form Factor
      2U Rackmount
    • Dimensions (W x H x D)
      19” x 3.5” x 25.5”
    • Network Interface
      2 x 10GBase-T – Onboard
    • 2 x SFP+ 10Gb/port – Card
    • Management
      Dedicated IPMI 2.0 – RJ45
    • Power
    • Total Output Power
      1000W/1200W
    • Input
      100-127Vac / 15-12A / 50-60Hz
    • 200-240Vac / 8.5-7A/ 50-60 Hz
    • +12V
      Max: 83A / Min: 0A (100-127Vac)
    • Max: 100A / Min: 0A (200-240Vac)
    • Max: 100A / Min: 0A (200-240Vdc)
  • Ootbi 128TB
    • Capacity
    • Usable Capacity Per Node
      128TB
    • Maximum Nodes Per Cluster
      4
    • Disk Arrangement
    • Primary Array
      10 x 16 TB SAS HDD (RAID 6)
    • Hot Spare
      1 x 16 TB SAS HDD
    • Dedicated OS Disks
      2 x 240 GB SATA SSD (RAID 1)
    • Cache
      1 x 1.6 TB NVMe
    • Specifications
    • Form Factor
      2U Rackmount
    • Dimensions (W x H x D)
      19” x 3.5” x 25.5”
    • Network Interface
      2 x 10GBase-T – Onboard
    • 2 x SFP+ 10Gb/port – Card
    • Management
      Dedicated IPMI 2.0 – RJ45
    • Power
    • Total Output Power
      1000W/1200W
    • Input
      100-127Vac / 15-12A / 50-60Hz
    • 200-240Vac / 8.5-7A/ 50-60 Hz
    • +12V
      Max: 83A / Min: 0A (100-127Vac)
    • Max: 100A / Min: 0A (200-240Vac)
    • Max: 100A / Min: 0A (200-240Vdc)
  • Ootbi 192TB
    • Capacity
    • Usable Capacity Per Node
      192TB
    • Maximum Nodes Per Cluster
      4
    • Disk Arrangement
    • Primary Array
      10 x 24 TB SAS HDD (RAID 6)
    • Hot Spare
      1 x 24 TB SAS HDD
    • Dedicated OS Disks
      2 x 240 GB SATA SSD (RAID 1)
    • Cache
      1 x 1.6 TB NVMe
    • Specifications
    • Form Factor
      2U Rackmount
    • Dimensions (W x H x D)
      19” x 3.5” x 25.5”
    • Network Interface
      2 x 10GBase-T – Onboard
    • 2 x SFP+ 10Gb/port – Card
    • Management
      Dedicated IPMI 2.0 – RJ45
    • Power
    • Total Output Power
      1000W/1200W
    • Input
      100-127Vac / 15-12A / 50-60Hz
    • 200-240Vac / 8.5-7A/ 50-60 Hz
    • +12V
      Max: 83A / Min: 0A (100-127Vac)
    • Max: 100A / Min: 0A (200-240Vac)
    • Max: 100A / Min: 0A (200-240Vdc)

All product specifications, statements, information, and data (collectively, the “Information”) in this datasheet or made available on Object First’s website are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this datasheet is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied.

Statements of suitability for certain applications are based on Object First’s knowledge of typical operating conditions for such applications but are not intended to constitute and Object First specifically disclaims any warranty concerning suitability for a specific customer application or use.
